Applications :

• The cables are designed for power distribution in points heating system. These heavy duty cables offer protection from abrasion and mechanical impact whilst maintaining fl exibility to ease installation.

Standards :

• NR/SP/ELP/40045 (formerly RT/E/PS/40045)
• BS 7919
• UNE 21027

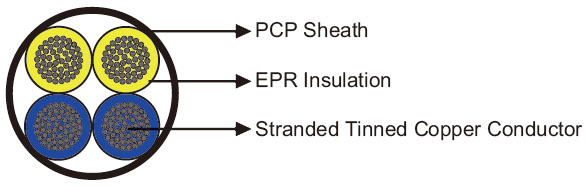

Construction :

• Conductors : Class 5 tinned copper conductors to BS 6360.
• Insulation : EPR type GP4 to BS 7655.
• Sheath : PCP type EM2 to BS 7655.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	1.5	2.5	4.0	6.0
  Maximum DC Conductor Resistance	Ω/km	13.7	8.21	5.09	3.39
  Voltage Rating	KV	0.3/0.5

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD.
• Temperature Range : -30°C to +70°C(during operation) ; -10°C to +55°C (during installation).

Core Identification :

• 4core : yellow, yellow, blue, blue
• 8core : yellow, yellow, blue, blue, Brown, brown, black, black

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	No. & Nominal Diameter of Strands No/mm	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RF40045-H05RNF-300/500V-4G1.5	4×1.5	30/0.25	0.8	14.3	220
RF40045-H05RNF-300/500V-4G2.5	4×2.5	50/0.25	0.9	16.5	390
RF40045-H05RNF-300/500V-4G4	4×4.0	56/0.30	1.0	18.5	420
RF40045-H05RNF-300/500V-8G1.5	8×1.5	30/0.25	0.8	18.5	460
RF40045-H05RNF-300/500V-8G2.5	8×2.5	50/0.25	0.9	21.4	510
RF40045-H05RNF-300/500V-8G4	8×4.0	56/0.25	1.0	23.6	830
RF40045-H05RNF-300/500V-8G6	8×6.0	84/0.30	1.0	25.6	1040
RF40045-H05RNF-300/500V-8G10	8×10.0	75/0.40	1.2	31.7	1799
RF40045-H05RNF-300/500V-8G16	8×16.0	118/0.40	1.2	36.2	2480





Impact Resistant	Highly Flexible	Oil Resistant	Weather Resistant	Laid In conduit
